Adlink MVP-5102
Product Information
| Product |
Adlink MVP-5102/M16G |
| CPU |
Intel core i5-9500TE , 2208Mhz , 6 core(S) |
| Serial# |
93-41045-2210Z |
| acontis product - version |
EC-WinRTOS-32 - v8.1.3.2 |
| OS |
Windows 10, 21H2, Build 19044.3448 |
| BIOS Version |
American Megatrends, 1.12.12 , 03/31/2023 |
Bios Settings
- Reset Default Settings
- Boot -> boot mode select -> UEFI
- GT-Power Management Control ->Maximum GT frequency->100Mhz
Measurement Results

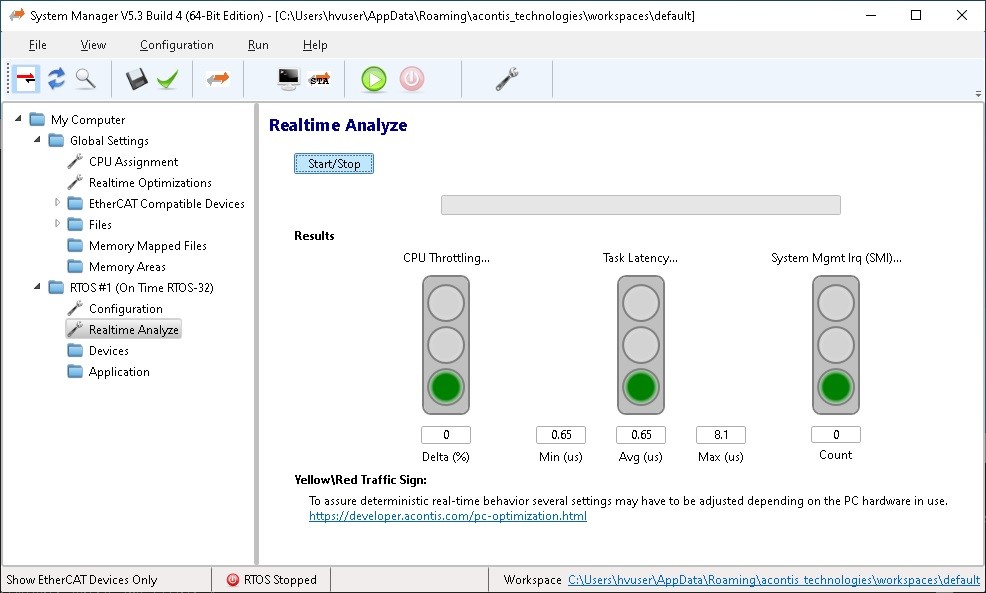

RTOS32Win: Task latency Intel VGA Driver (24h)
| Value |
[us] |
| Average [avg]: |
0.96 |
| Worst case [max]: |
16.04 |
| Cur |
Avg |
Min |
Max |
Unit |
Description |
| - |
0.8 |
0.7 |
11.9 |
[us] |
Latency ISR |
| - |
1.0 |
0.9 |
16.0 |
[us] |
Latency IST |
| 1000.0 |
- |
989.7 |
1010.3 |
[us] |
Period ISR (TSC) |
| 1000.0 |
- |
986.3 |
1014.0 |
[us] |
Period IST (TSC) |
| 999.9 |
- |
977.0 |
1024.8 |
[us] |
Period IST (HPET) |
| 100.0 |
- |
74.46 |
136.96 |
[%] |
CPU clock rate (ARAT: Y) |
| 0 |
- |
- |
- |
|
Undesired SMIs |
| Count ISR=154400249 IST=154400249 |
RTOSVisor: Task latency Intel VGA Driver (4 days)
| Cur |
Avg |
Min |
Max |
Unit |
Description |
| - |
0.8 |
0.7 |
20.8 |
[us] |
Latency ISR |
| - |
1.0 |
0.9 |
24.2 |
[us] |
Latency IST |
| 1000.0 |
- |
988.3 |
1011.8 |
[us] |
Period ISR (TSC) |
| 1000.0 |
- |
977.7 |
1022.2 |
[us] |
Period IST (TSC) |
| 999.9 |
- |
971.6 |
1024.3 |
[us] |
Period IST (HPET) |
| 99.9 |
- |
96.15 |
103.79 |
[%] |
CPU clock rate (ARAT: Y) |
| 0 |
- |
- |
- |
|
Undesired SMIs |
| Count ISR=362538801 IST=362538801 |
RTOS32WIN: Task latency Standard VGA Driver
| Value |
[us] |
| Average [avg]: |
0.92 |
| Worst case [max]: |
8.96 |
| Cur |
Avg |
Min |
Max |
Unit |
Description |
| - |
0.7 |
0.7 |
8.8 |
[us] |
Latency ISR |
| - |
0.9 |
0.9 |
9.0 |
[us] |
Latency IST |
| 1000.0 |
- |
992.2 |
1008.0 |
[us] |
Period ISR (TSC) |
| 1000.0 |
- |
992.2 |
1008.1 |
[us] |
Period IST (TSC) |
| 1000.0 |
- |
978.6 |
1023.4 |
[us] |
Period IST (HPET) |
| 99.99 |
- |
99.90 |
100.08 |
[%] |
CPU clock rate (ARAT: Y) |
| 0 |
- |
- |
- |
|
Undesired SMIs |
| Count ISR=167455287 IST=167455287 |
EC-Master Job Times: RTOS32Win
| Measurant in [usec] |
min |
avg |
max |
| 'Cycle Time' |
981.5 |
1000.0 |
1017.0 |
| 'Task Duration (JOB_Total + App)' |
6.1 |
9.8 |
43.1 |
| 'JOB_Total' |
5.3 |
9.0 |
42.0 |
| 'JOB_ProcessAllRxFrames Duration' |
0.6 |
0.7 |
11.1 |
| 'JOB_SendAllCycFrames Duration' |
4.1 |
7.8 |
36.5 |
| 'JOB_MasterTimer Duration' |
0.4 |
0.4 |
9.8 |
| 'JOB_SendAcycFrames Duration' |
0.2 |
0.2 |
13.7 |
| 'myAppWorkPd' |
0.2 |
0.2 |
2.9 |
EC-Master Job Times: RTOSVisor, RT-Linux
Hint: IntelGbe driver with one PCI access per send call
| Measurant in [usec] |
min |
avg |
max |
| 'Cycle Time' |
968.5 |
1000.0 |
1027.7 |
| 'Task Duration (JOB_Total + App)' |
3.9 |
6.7 |
34.2 |
| 'JOB_Total' |
3.5 |
6.2 |
27.4 |
| 'JOB_ProcessAllRxFrames Duration' |
0.6 |
0.7 |
19.0 |
| 'JOB_SendAllCycFrames Duration' |
2.2 |
4.8 |
16.0 |
| 'JOB_MasterTimer Duration' |
0.4 |
0.5 |
11.3 |
| 'JOB_SendAcycFrames Duration' |
0.1 |
0.2 |
6.3 |
| 'myAppWorkPd' |
0.1 |
0.1 |
2.2 |
EC-Master Job Times: RTOSVisor, RTOS-32
Hint: old IntelGbe driver with two PCI accesses per send call
24h
| Measurant in [usec] |
min |
avg |
max |
| 'Cycle Time' |
974.2 |
1000.0 |
1024.9 |
| 'Task Duration (JOB_Total + App)' |
4.2 |
7.9 |
35.0 |
| 'JOB_Total' |
3.4 |
7.1 |
32.0 |
| 'JOB_ProcessAllRxFrames Duration' |
0.5 |
0.7 |
18.4 |
| 'JOB_SendAllCycFrames Duration' |
2.2 |
5.8 |
21.6 |
| 'JOB_MasterTimer Duration' |
0.3 |
0.4 |
11.7 |
| 'JOB_SendAcycFrames Duration' |
0.1 |
0.2 |
4.8 |
| 'myAppWorkPd' |
0.2 |
0.2 |
4.3 |
2.5 days
| Measurant in [usec] |
min |
avg |
max |
| 'Cycle Time' |
970.5 |
1000.0 |
1031.1 |
| 'Task Duration (JOB_Total + App)' |
4.1 |
7.7 |
37.9 |
| 'JOB_Total' |
3.4 |
6.9 |
32.1 |
| 'JOB_ProcessAllRxFrames Duration' |
0.5 |
0.6 |
24.3 |
| 'JOB_SendAllCycFrames Duration' |
2.2 |
5.8 |
21.6 |
| 'JOB_MasterTimer Duration' |
0.3 |
0.4 |
12.2 |
| 'JOB_SendAcycFrames Duration' |
0.1 |
0.2 |
4.8 |
| 'myAppWorkPd' |
0.2 |
0.2 |
4.3 |
